Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder

Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
شروط الدفع والشحن
وصف المنتج

Product Details

Items:

PVC Pipe Machine

Total Power:

70kw

Production Line Length:

Around 25meters

Barral Type:

HYPET Two Parts

Extruder:

55/120

Output:

220kg/h

Supply Power:

380V, 3phases

Main Motor:

30kw

Extruder Type:

Conic Twin Screw Type

Control System:

PLC With Touch Screen

Processing Material:

PVC Powder

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

Conduit Cable PVC Pipe Extruder

High Efficient PVC Pipe Extruder

Payment & Shipping Terms

Minimum Order Quantity

PVC Pipe Machine of 1set

Price

USD37000/set

Packaging Details

Pvc Pipe Machine LCL wooden case, FCL with film and rope fixing

Delivery Time

Pvc Pipe Machine 30-50days

Payment Terms

L/C, T/T, Western Union, MoneyGram

Supply Ability

Pvc Pipe Machine 200 sets /year









Product Description

High efficient 20-63mm PVC UPVC conduit cable Dual Pipe double head Production Line With ZS55/120 Extruder at good price



Pvc Pipe Machine Special features:

1. It can be equipped with ZS51/110 extruder output 200kg/h or it can be equipped with 65/132 high output 350kg/h for optional

2. Siemens PLC controls the entire production line, HYPET software, and high configuration

3. Bimetal barrel screw, shelf life 3 years

4. The vacuum box is natural color, paint-free, high-quality, and high-precision control.

5. Can be equipped with a double-tube packaging machine to achieve a fully automatic control production line

6. Top quality machine with enconomical price.

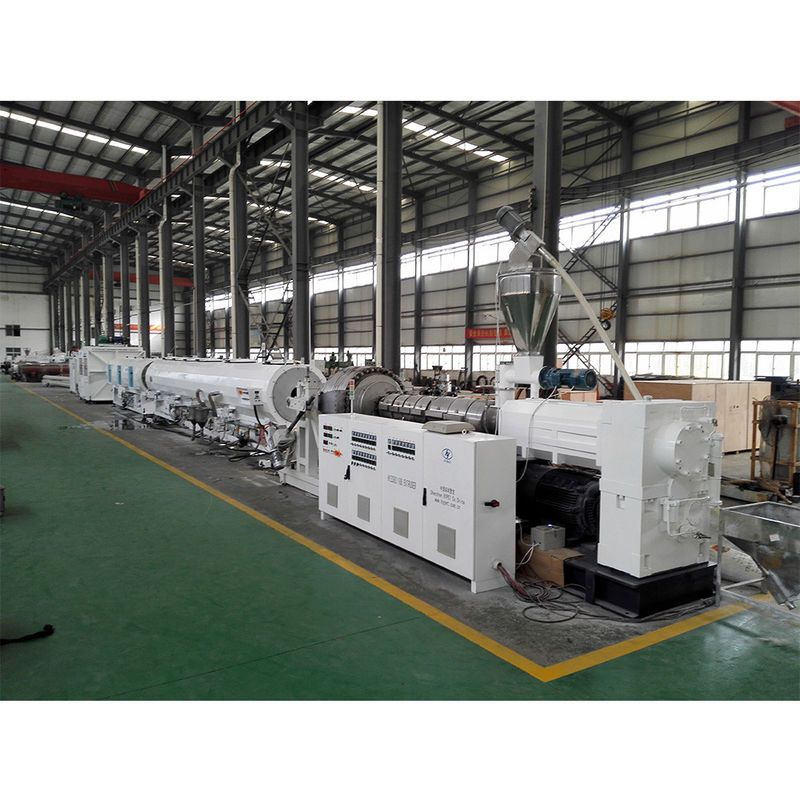

Pvc Pipe Machine ​Consists of the production line:

Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder 0



SN

Parts name

Quantity

1

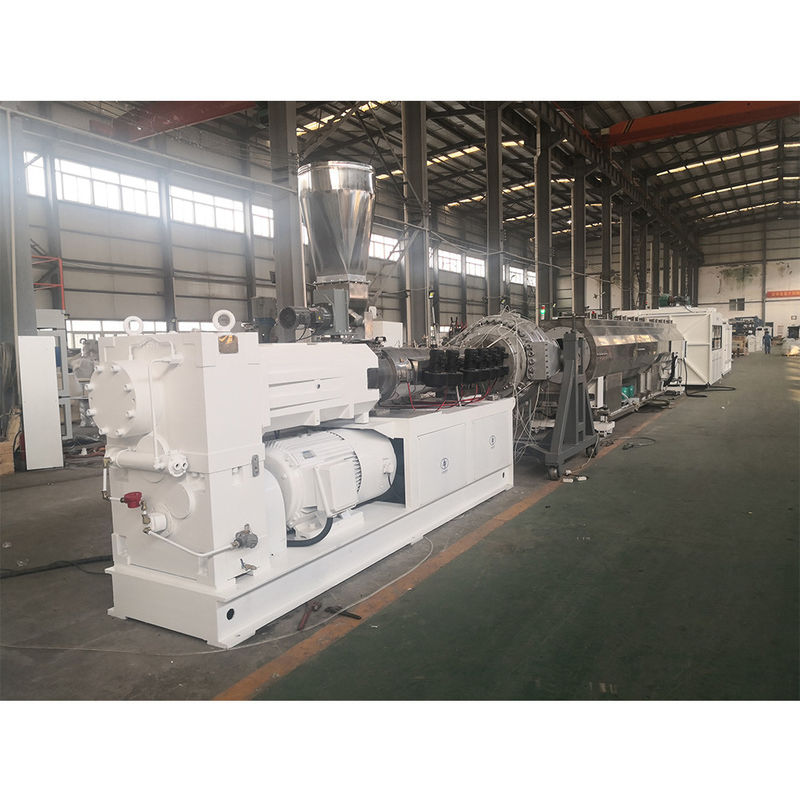

HYZS55/120 conic twin screw extruder

1 set

2

Auto loader in spring type for the extruder

1 set

3

Die head for 20~63mm in 3 pressure grade

1 set

4

Vacuum tank in double station

1 set

5

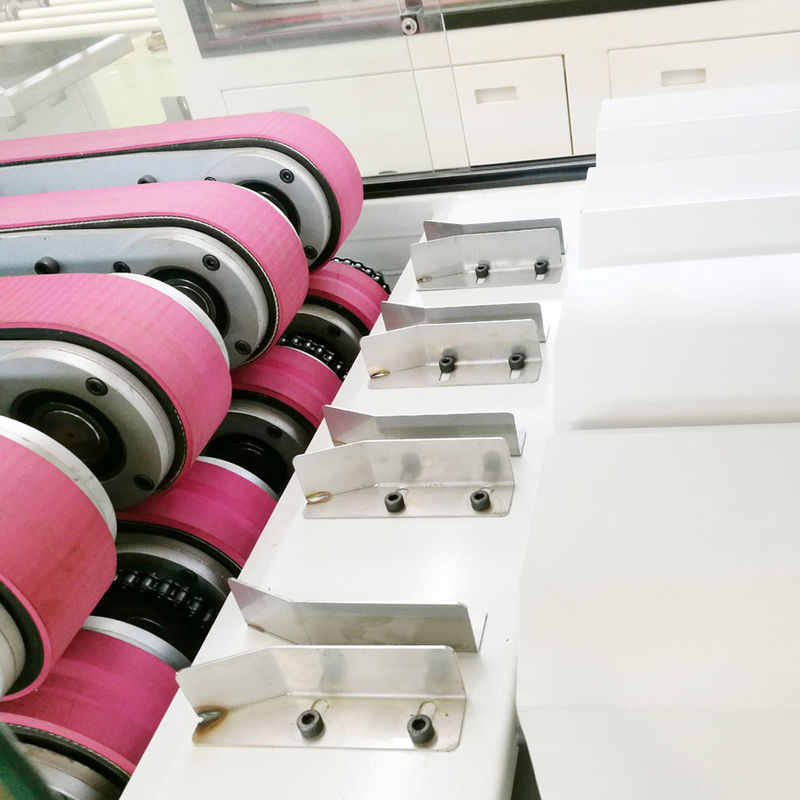

Haul off in double station

1 set

6

Dustless cutter in double station

1 set

7

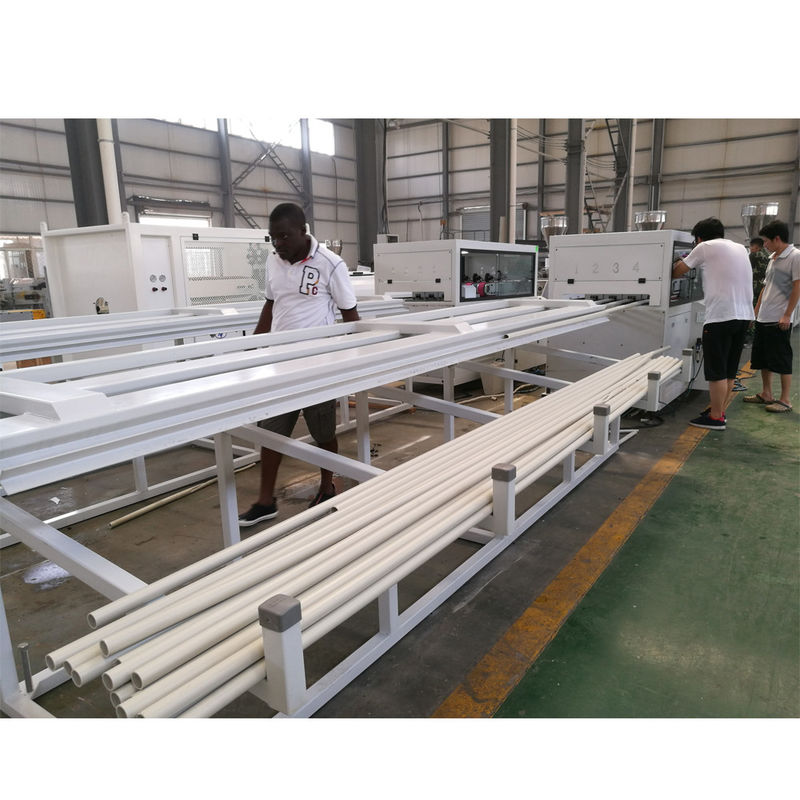

Stacker in double station

1 set























Pvc Pipe Machine Circumstances condition



SN

Condition

Specification

Description

1

Natural

circumstance

condition

Working place

Indoor use

Power source

No dangerous area

Humidity

55%~85% no condensation

Temperature

0~40 ℃

2

Electricity

source

Installation capacity

200 kW

Actual power consumption

28 kW

Power supply

3P+N+PE

Voltage/Frequency

380V/50Hz other can be option

3

Cooling water

Temperature

≤15 ℃

Water pressure

≥0.3MPa

Flow

~15 m3/h

4

Air condition

Compressor air pressure

≥0.6MPa

Flow

~0.9 m3/min





































Specification of the ZS55/120



SN

Parts name

Specification

Description

1

Extruder

Extruder model

HYZS-55/120 conic twin screw









Output

200-280kg/h for pipe

100-150kg/h for profile or more





Center height

1000mm





Dimension

2710 x 1250 x 2600mm





Weight

2300kg

2

Screw

Diameter

Ø55/120 mm





Material

38CrMoAlA + special alloy





Finish

Nitrogen-filled (0.50~0.70mm depth) and polish





Rotate speed

0~38 r/min





Core of the screw

Auto control for temperature

(Oil cooling will be for option )

3

Barrel

Barrel Structure

In two parts, front part will be with special alloy inserted.





Big Part of the barrel

38CrMoAlA





Fron part of the barrel

SKD11 with heat treatment





Inside finish

Nitrogen-filled (0.50~0.70mm depth)



4

Temp/ pressure transducer

Quality

China famous brand

Structure

Separately senses both in pressure and temperature

Cable

High isolated cable line

Screen

Both in monitor or screen display

5

Heater and cooling fans

Heating control area

4 zones

Heating way

Cast aluminum/ ceramics

Heating power

16kW

Cooling system

Low-noisy barrel cooling fan

Cooling power

0.2kw x 3 sets

Water/oil cooling

One zone in front part for option

Heat isolating

Special isolating material and structure for energy saving.

6

HYPET Gear box

Housing material

Ductile iron

Gear material

20CrMnTiA

Gear surface

Hardened and ground in high precision

Axis material

40Cr

Temperature of oil

Controlled by two system,

Rubber sealer

Imported specal rubber sealer used

Bearings

Wih famous and reliable brand.

7

Twin screw Dosing

feeder

Supplying material motor

1.5 kW

Speed range

1-50 RPM

Powder bridge

Anti powder bridge with high Caco3

Inverter

Delta heavy loader type

8

Vacuum degas with selector

Vacuum degree

-0.04Mpa

Motor power

1.5 kw

Vacuum tank

Easy to be clean



Auto clean device



Air control auto Clean device for option.

9

Driving motor

AC motor power

30 kW in Siemens brand

AC inverter controller

Delta in heavy type





Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder 1

Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder 2
